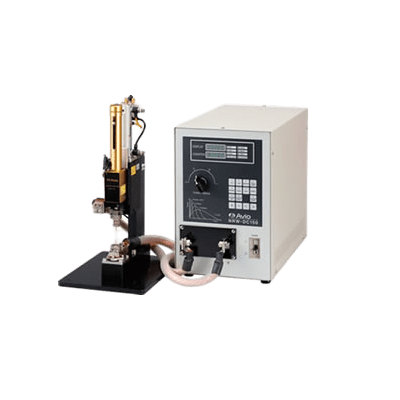

NRW-DC150
Micro Spot Welder
Price: Liên hệ
Views: 46
Suitable for Welding of Battery Tab, Aluminum and Copper. Using large-capacity energy storage, with quick release of weld energy (discharge time on the order of a few ms).
- Dual Pulse Function Minimizes Welding Spark and Improves Welding Quality.
- Suitable for Aluminum, Copper, as well as other Welding Materials.
- Deformation and Burning is Minimized due to Short, Concentrated Energy Burst.
- Fast charging time improves productivity (Welding Speed 75W･S 120Shots/ min).
- VS (Very Short) mode allows to obtain peak welding current same as 200W･S type.
The content is updating
Rapid Release of Energy
High Capacitance Energy Storage
Fast Charging Time
Product Specifications
| Items | NRW-DC150 |
| Welding Transformer | Built-in type |
| Stored Energy | 1 – 150W.S (0.1 Step) |
| Maximum Output Power | VS Pulse 5500A 2.1ms S Pulse 4500A 3.2ms M Pulse 3600A 4.3ms L Pulse 2600A 6.2ms |
| Duty Cycle | 25W･S 200 shots/min 75W･S 120 shots/min 150W･S 80 shots/min |
| Dual Pulse Function | Standard Specification |
| Squeeze time | 0.01 – 9.99 sec |
| Hold Time | 0.01 – 9.99 sec |
| Power Source | AC200 – 230V ±10% 1Φ (Option: AC100V) |
| Dimension / Weight | W220 x D400 x H347mm ≈31kg |
